Deflector Sheave Ni ategun
| Orukọ ọja | Elevator Deflector Sheave |
| Iwọn opin | Φ200 - Φ640 |
| Nọmba ti Iho | 2-10 |
| Okun | 6.5 - 16 |
| Iho ipolowo | 12-25 |
1.Increase awọn aaye laarin awọn ọkọ ayọkẹlẹ ati awọn counterweight ki o si yi awọn itọsọna ti ronu ti awọn okun waya.
2.The elevator guide kẹkẹ ni o ni a pulley be, ati awọn oniwe-ipa ni lati fi awọn akitiyan ti awọn pulley Àkọsílẹ.

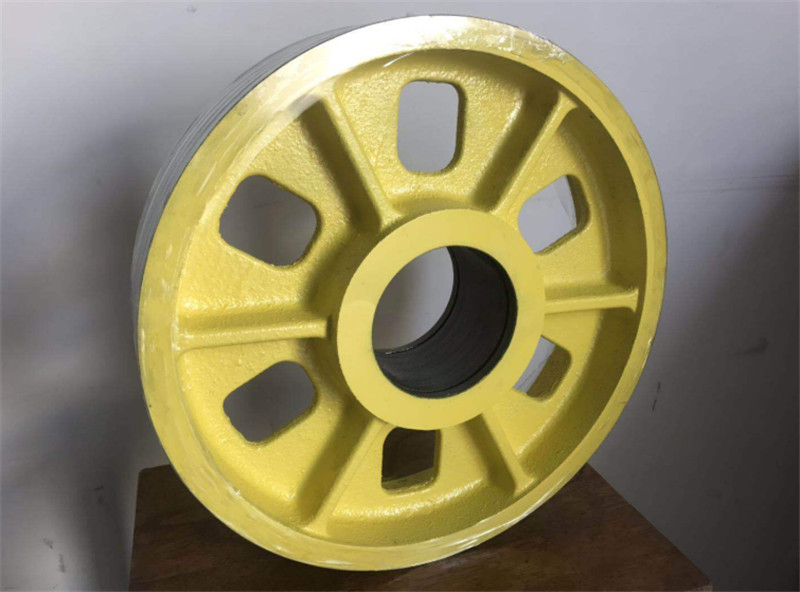

3.Provide MC ọra Deflector Sheave ati Simẹnti Iron Deflector Sheave.
4.We pese ohun ti o fẹ, o jẹ ayọ lati ni igbẹkẹle! Emi kii yoo kuna igbẹkẹle rẹ lailai!
| Awoṣe | Opin (D) | Okun |
| THY-200-01 | 200 | 3 * Φ6.5-12 |
| THY-200-02 | 200 | 4 * Φ6.5-13 |
| THY-200-03 | 200 | 4 * Φ6.5-15 |
| THY-240-01 | 240 | 3*Φ8-12 |
| THY-240-02 | 240 | 4*Φ8-13 |
| THY-240-03 | 240 | 4*Φ8-13 |
| THY-250-01 | 250 | 3*Φ8-13 |
| THY-320-01 | 320 | 3*Φ8-12 |
| THY-320-02 | 320 | 4*Φ8-12 |
| THY-320-03 | 320 | 5*Φ8-12 |
| THY-320-04 | 320 | 6 * Φ10-15 |
| THY-320-05 | 320 | 7 * Φ10-15 |
| THY-320-06 | 320 | 8*Φ8-12 |
| THY-360-01 | 360 | 6 * Φ10-16 |
| THY-360-02 | 360 | 7 * Φ10-16 |
| THY-400-01 | 400 | 4 * Φ10-16 |
| THY-400-02 | 400 | 5*Φ10-16 |
| THY-400-03 | 400 | 6 * Φ10-16 |
| THY-400-04 | 400 | 7 * Φ10-16 |
| THY-400-05 | 400 | 8*Φ10-16 |
| THY-440-01 | 440 | 5*Φ10-16 |
| THY-480-01 | 480 | 5*Φ12-18 |
| THY-480-02 | 480 | 6*Φ12-18 |
| THY-520-01 | 520 | 5*Φ10-16 |
| THY-520-02 | 520 | 5*Φ13-19 |
| THY-520-03 | 520 | 5*Φ13-24 |
| THY-520-04 | 520 | 6 * Φ13-20 |
| THY-520-05 | 520 | 6*Φ13-24 |
| THY-640-01 | 640 | 5*Φ16-25 |
| THY-640-02 | 640 | 6*Φ16-25 |
| THY-640-03 | 640 | 7*Φ16-25 |
| THY-640-04 | 640 | 8*Φ16-25 |
Okùn okun jẹ ẹya ẹrọ pataki ninu elevator, ati pe o jẹ iru pulley gbigbe ti a lo ninu elevator. Awọn movable pulley ti wa ni maa ṣeto lori oke apa ti awọn ọkọ ayọkẹlẹ fireemu ati awọn counterweight fireemu. Awọn ohun elo meji wa: kẹkẹ irin simẹnti ati kẹkẹ ọra. Ni ibamu si awọn iyẹfun elevator yara ẹrọ, o ti pin si awọn itọka itọnisọna yara ẹrọ, awọn ọkọ ayọkẹlẹ oke ọkọ ayọkẹlẹ ati awọn iyẹfun counterweight; ẹrọ yara-yara ti ko kere si awọn itọka elevator ti pin si awọn ọkọ ayọkẹlẹ isalẹ ọkọ ayọkẹlẹ ati awọn iyẹfun counterweight. Awọn ipin isunmọ oriṣiriṣi le ṣee ṣe nipasẹ gbigbe okun ni ayika ití yiyi bi o ṣe nilo. Awọn itisi elevator ni gbogbogbo ti awọn ara kẹkẹ, awọn bearings, awọn ọpa, awọn oruka idaduro, awọn igbo, ati bẹbẹ lọ, ati pe o le ṣee lo pẹlu awọn boluti U.

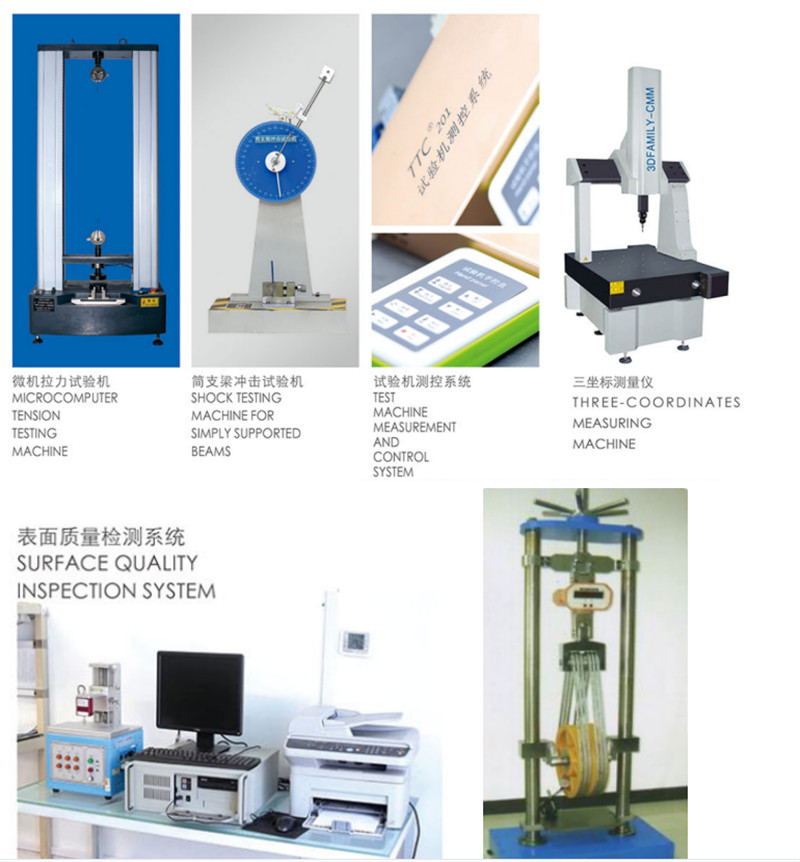

Lati le rii daju lilo ailewu ti awọn kẹkẹ elevator, a ti kọja awọn iṣiro lile ati awọn iṣe lati apẹrẹ si idanwo titẹ gangan ati idanwo ti ogbo lati rii daju pe awọn alabara le lo awọn ọja to gaju.
1. Alawọ ewe ati aabo ayika, irisi lẹwa;
2. Iye owo kekere ati iṣẹ egboogi-ti o dara;
3. Iwọn ina, akoko kekere ti inertia, ati apejọ ti o rọrun
4. Ariwo kekere ati iṣẹ imudani mọnamọna to dara;
5. Nrakò resistance ati ti o dara resilience;
6. Simẹnti centrifugal ti o ga julọ ti ohun elo ọra ti o ga-molekula ni eto inu inu ti o dara, eto iṣọkan, iwọntunwọnsi agbara ti o dara ati iṣakoso didara irọrun.
1. Yiya-sooro ati ki o gun iṣẹ aye;
2. Iduroṣinṣin to dara julọ ati ibiti ohun elo ti o gbooro;
3. Agbara giga, ko rọrun lati fo tabi isokuso;
4. Ilẹ naa ko ni rọọrun bajẹ nipasẹ okun waya irin;
5. Mu agbegbe olubasọrọ ti okun pulley ati ki o mu ija;
6. Mu igbẹkẹle ti gbigbe eto pọ si.
