Didara Elevator Irin Waya Awọn okun

Didara Didara Elevator Steel Waya Awọn okun Ti Afihan Aworan

Apejuwe kukuru:

Awọn elevator ero-ọkọ kekere ti o kere julọ ti a lo fun awọn okun waya elevator. Ni awọn agbegbe ibugbe ti iṣowo, awọn pato okun waya elevator jẹ gbogbo 8*19S+FC-8mm, 8*19S+FC-10mm.

Fi imeeli ranṣẹ si wa

Alaye ọja

ọja Tags

Ọja paramita

1.This sipesifikesonu ni o dara fun iyara limiter okun okun, kekere iyara, kekere fifuye elevator

2.We tun le ṣe atunṣe gẹgẹbi awọn ibeere rẹ.

Opin Okun Okun	6*19S+PP	Fifuye Fifọ Kere
	Isunmọ iwuwo	Tensile Meji,Mpa		Tensile Nikan,Mpa
	Isunmọ iwuwo	1370/1770	Ọdun 1570/1770	Ọdun 1570	Ọdun 1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
8	23	31.7	34.6	33.2	37.4

1.Natural fiber core (NFC): Dara fun okun waya ti ẹrọ isunmọ pẹlu iyara ti a ṣe ayẹwo ≤ 2.0m / s

2.Igi giga≤80M

Opin Okun Okun	8*19S+NFC	Fifuye Fifọ Kere
	Isunmọ iwuwo	Tensile Meji,Mpa		Tensile Nikan,Mpa
	Isunmọ iwuwo	1370/1770	Ọdun 1570/1770	Ọdun 1570	Ọdun 1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

1.Fun IWRC, iyara> 4.0 m / s, Ilé giga> 100m

2.Fun IWRF, 2.0

Opin Okun Okun	8*19S		Fifuye Fifọ Kere
	Isunmọ iwuwo		Tensile Nikan,Mpa
	Isunmọ iwuwo		Ọdun 1570		Ọdun 1620		Ọdun 1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m		kN		kN		/	kN
8	26	25.9	35.8	35.2	36.9	35.2	40.3	39.6
9	33	32.8	45.3	44.5	46.7	45.9	51	50.2
10	40.7	40.5	55.9	55	57.7	56.7	63	62
11	49.2	49	67.6	66.5	69.8	68.6	76.2	75
12	58.6	58.3	80.5	79.1	83	81.6	90.7	89.2
13	68.8	68.4	94.5	92.9	97.5	98.5	106	105
14	79.8	79.4	110	108	113	111	124	121
15	91.6	91.1	126	124	130	128	142	139
16	104	104	143	141	148	145	161	159
18	132	131	181	178	187	184	204	201
19	147	146	202	198	208	205	227	224
20	163	162	224	220	231	227	252	248
22	197	196	271	266	279	274	305	300

ọja Alaye

Awọn elevator ero-ọkọ kekere ti o kere julọ ti a lo fun awọn okun waya elevator. Ni awọn agbegbe ibugbe ti iṣowo, awọn pato okun waya elevator jẹ gbogbo 8*19S+FC-8mm, 8*19S+FC-10mm. Awọn ibi-itaja riraja lo awọn pato okun elevator ti o tobi diẹ ti 12mm, 13mm, ati fifuye elevator, irin awọn pato okun okun ti 12mm, 13mm, ati 16mm ni iwọn ila opin.

Ni pipaṣẹ okun waya irin, o beere lọwọ rẹ lati fun wa ni alaye pipe gẹgẹbi pato ni isalẹ:

1. Idi: Fun okun wo ni ao lo;

2. Iwọn: Iwọn ila opin ti okun ni milimita tabi inches;

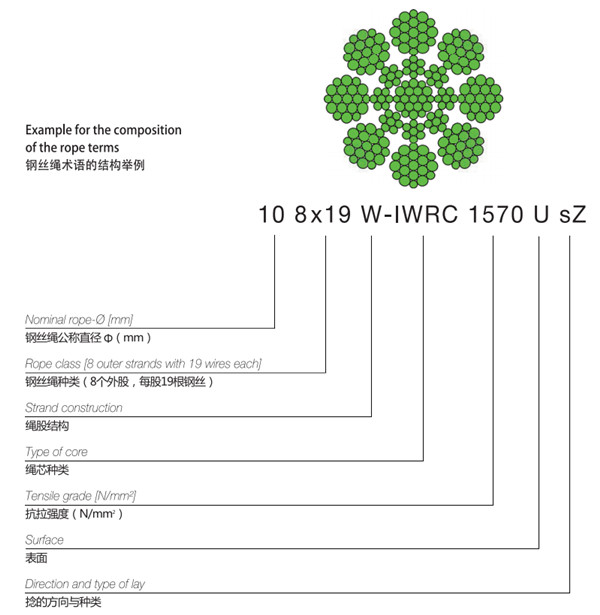

3. Ikole: Nọmba awọn okun, nọmba awọn okun fun okun ati iru ikole imurasilẹ;

4. Iru Core: Fiber core (FC), okun okun waya olominira (IWRC) tabi okun okun waya ominira (IWSC);

5. Dubulẹ:Ọtun deede dubulẹ,osi deede dubulẹ,Ọtun lang dubulẹ,osi lang dubulẹ.

6. Ohun elo: Imọlẹ (ungalvanized), galvanized tabi irin alagbara;

7. Ite ti Waya: Agbara fifẹ ti awọn okun;

8. Lubrication: Boya lubrication ti wa ni fẹ tabi ko ati ki o beere lubricant;

9. Ipari: ipari ti okun waya;

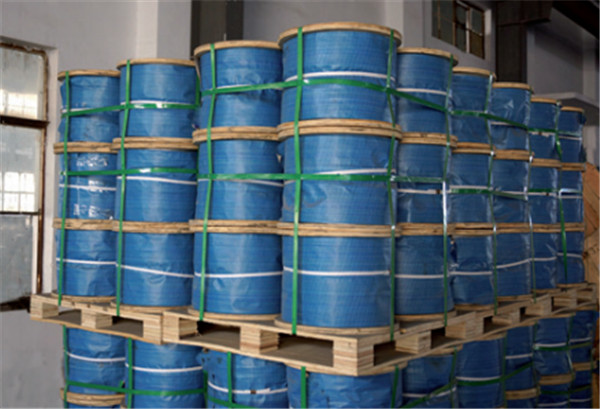

10. Iṣakojọpọ: Ninu awọn iyipo ti a we pẹlu iwe epo ati aṣọ hessian tabi lori awọn iyipo igi;

11. Opoiye: Nipa nọmba ti coils tabi reels nipa ipari tabi àdánù;

12. Awọn akiyesi: Awọn ami gbigbe ati awọn ibeere pataki miiran.

Ninu iṣẹ ṣiṣe igba pipẹ, epo lubricating lori okun waya yoo dinku diẹdiẹ. Nitorina, o jẹ dandan fun okun waya lati wa ni lubricated nigbagbogbo, eyi ti o le fa igbesi aye iṣẹ ti okun waya, ki o dinku yiya ati ki o dẹkun ipata nipasẹ atunṣe. Ti a bawe pẹlu okun waya lubricated ni kikun, igbesi aye iṣẹ ti okun waya gbigbẹ le dinku nipasẹ to 80%! Relubrication ti okun waya ṣe ipa pataki pupọ. Nigbagbogbo a yan epo lubricating T86, eyiti o jẹ omi tinrin pupọ ti o le ni irọrun wọ inu okun waya. O nilo fẹlẹ nikan tabi agba to ṣee gbe 1 lita lati fun sokiri rẹ. Awọn ipo ti lilo yẹ ki o wa ni ibi ti awọn okun waya fọwọkan awọn isunki sheave tabi kẹkẹ guide, ki awọn waya kijiya ti lubricant le ṣàn sinu okun waya diẹ sii ni rọọrun.
