Gbigbe Itọsọna Rail Fun Elevator
| Awoṣe | b1 | h1 | k | n | f | g | c |
| T70/B | 70 | 65 | 9 | 34 | 8 | 6 | 6 |
| T75/B | 75 | 62 | 10 | 30 | 9 | 7 | 8 |
| T78/B | 78 | 56 | 10 | 26 | 8.5 | 6 | 7 |
| T82/B | 82.5 | 68.25 | 9 | 25.4 | 8.25 | 6 | 7.5 |
| T89-1 | 89 | 62 | 16 | 32 | 9 | 7 | 8 |
| T89/B | 89 | 62 | 16 | 34 | 11.1 | 7.9 | 10 |
| T90/B | 90 | 75 | 16 | 42 | 10 | 8 | 10 |
| T114/B | 114 | 89 | 16 | 38 | 11 | 8 | 9.5 |
| T127-1/B | 127 | 89 | 16 | 45 | 11 | 8 | 10 |
| T127-2/B | 127 | 89 | 16 | 51 | 15.9 | 12.7 | 10 |
| T140-1/B | 140 | 108 | 19 | 51 | 15.9 | 12.7 | 12.7 |
| T140-2/B | 140 | 102 | 28.6 | 51 | 17.5 | 14.5 | 17.5 |
| T140-3/B | 140 | 127 | 31.75 | 57 | 25.4 | 17.5 | 19 |

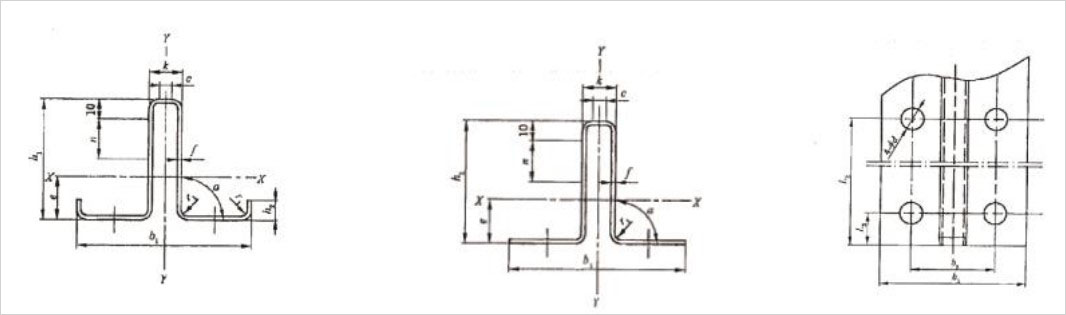

| Awoṣe | b1 | c | f | h1 | h2 | k | n |
| TK3 | 87±1 | ≥1.8 | 2 | 60 |
| 16.4 | 25 |
| TK5 | 3 | ||||||
| TK3A | 78±1 | ≥1.8 | 2.2 | 60 | 10±1 | 16.4 | 25 |
| TK5A | 3.2 |
1. Machined ategun Itọsọna Rail
2. Tutu kale ategun Itọsọna Rail
3.Customized Elevator Guide Rail
4. Hollow ategun Itọsọna Rail
5. Tutu fa elevator guide iṣinipopada fishplates, machined elevator guide iṣinipopada fishplates, pataki sisanra fishplates, T apakan fishplates, eke awọn agekuru, sisun clamps, sisun awọn agekuru, T-agekuru.
6.Standard: ISO 7465.
7.Awoṣe: T45A, T50A, T70B, T75B, T78B, T82B, T89B, T90B, T114B, T127B, TK3, TK3A, TK5, TK5A.
8.Packing: Awọn irin-ajo itọnisọna wa ti wa ni akojọpọ ni awọn idii, pẹlu awọn ideri aabo ni awọn opin mejeeji, ati pe a ti ṣajọpọ kọọkan pẹlu ṣiṣu ṣiṣu. A tun le lowo ni ibamu si awọn ibeere rẹ.
9.We le pese awọn irin-ajo itọnisọna brand gẹgẹbi MARAZZI, ati bẹbẹ lọ.
Iṣinipopada itọsona elevator jẹ ọna ti o ni aabo fun elevator lati rin irin-ajo si oke ati isalẹ ni ọna hoist, ni idaniloju pe ọkọ ayọkẹlẹ ati counterweight gbe soke ati isalẹ pẹlu rẹ. Iṣinipopada itọsọna so awo ati akọmọ iṣinipopada itọsọna si ogiri hoistway lati pese itọnisọna fun ọkọ ayọkẹlẹ elevator ati counterweight. Iṣẹ atilẹyin ti caliper ailewu nigbati braking jẹ apakan pataki ti eto elevator. Iṣinipopada itọsọna ti a nlo nigbagbogbo ninu awọn elevators jẹ iṣinipopada itọsọna ti “T” kan. Awọn ẹya ara ẹrọ bii rigidity ti o lagbara, igbẹkẹle giga, ailewu ati iye owo kekere. Ọkọ ofurufu iṣinipopada itọsọna gbọdọ jẹ dan, laisi oju ti ko han gbangba. Niwọn igba ti iṣinipopada itọsọna jẹ iṣinipopada ọkọ oju-irin ti bata itọsọna ati jia ailewu lori ọkọ ayọkẹlẹ elevator, imukuro gbọdọ wa ni idaniloju lakoko fifi sori ẹrọ. Ni akoko kanna, ọkọ oju-irin itọsọna ni lati ru ojuse ti idaduro elevator nigbati elevator ba ni ijamba ti o yara ju, nitorina a ko le foju pa lile rẹ.
Awọn afowodimu itọsọna elevator ti pin si: Awọn irin-ọna itọsọna to lagbara ati awọn irin-ajo itọsọna ṣofo counterweight.
Iṣinipopada itọsọna ti o lagbara jẹ iṣinipopada itọsọna ẹrọ, eyiti o ṣẹda nipasẹ sisẹ dada itọsọna ati sisopọ awọn apakan ti profaili iṣinipopada itọsọna. Idi rẹ ni lati pese itọnisọna fun iṣẹ ti ọkọ ayọkẹlẹ elevator lakoko iṣẹ ti elevator. Iṣinipopada itọsona kekere ti o lagbara ni a tun lo fun itọnisọna counterweight. Ọpọlọpọ awọn alaye iṣinipopada itọsọna to muna ni ibamu si iwọn ti ilẹ-iṣinipopada itọsọna, eyiti o le pin si T45, T50, T70, T75, T78, T82, T89, T90, T114, T127, T140, ati bẹbẹ lọ.

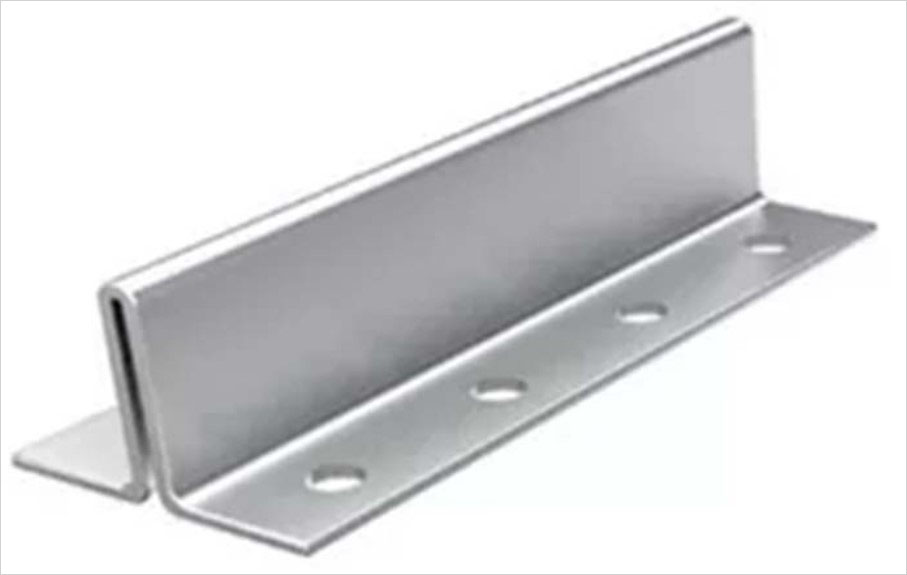

Counterweight ṣofo itoni afowodimu ni o wa tutu-idasilẹ sẹsẹ guide afowodimu pẹlu sisanra ti 2.75mm ati 3.0mm. Wọn ti wa ni tutu-ti a ṣẹda lati awọn awo ti a ṣajọpọ nipasẹ awọn apẹrẹ ti ọpọlọpọ-kọja. Wọn ti wa ni o kun lo lati pese itoni fun awọn counterweight nigba ategun isẹ ti. Awọn afowodimu itọsọna ṣofo le pin si awọn ẹgbẹ taara ati awọn ẹgbẹ flanged ni ibamu si apẹrẹ ti dada opin oju-irin itọsọna, eyun TK5 ati TK5A.
